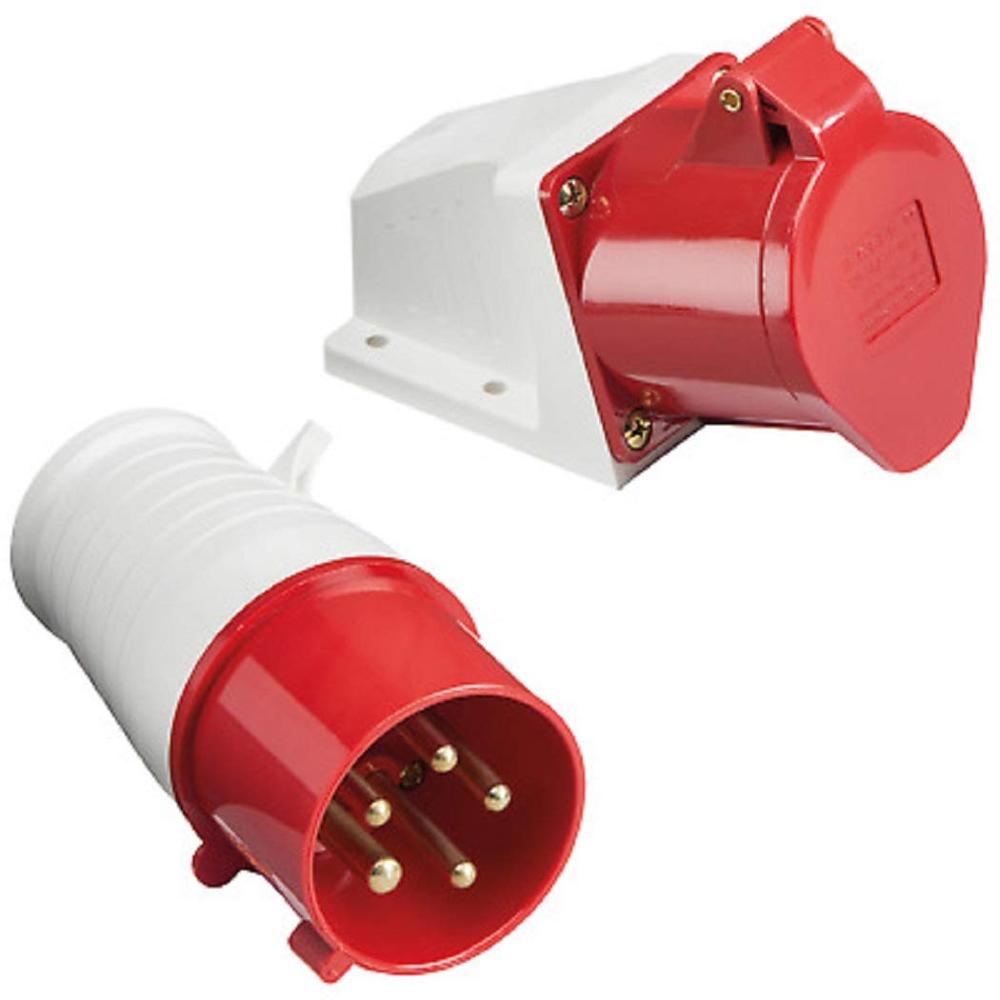

Send InquiryIndustrial Plug Socket
Price 225.0 INR/ Piece
MOQ : 10 Pieces
Industrial Plug Socket Specification
- Surface Treatment
- Smooth/Polished
- Sealed
- IP44/IP67 (optional available)
- Thickness
- 3-4mm
- Cable Diameter
- 10-16 mm
- Product Type
- Industrial Plug and Socket
- Material
- High-grade Polycarbonate (PC) / Polyamide (PA6)
- Application
- Heavy-duty machinery, Workshops, Construction sites
- Contact Resistance
- 5 m
- Insulation Resistance
- >5 M at 500V DC
- Diameter
- Plug Outer Diameter: 50-60mm (typical)
- Terminal Socket
- Brass Screw/Clamp Type
- Style
- IEC 60309
- Fittings
- Surface/Panel Mount
- Rated Voltage
- 415V AC
- Weight
- Approx. 180-250g (varies by type)
- Color
- Red & White
- Current Rating
- 16A/32A
- Mounting Type
- Plug (portable), Socket (surface panel)
- Frequency
- 50/60 Hz
- Standards
- IEC 60309-2 Compliant
- UV Resistant
- Yes
- Number of Poles
- 5 (3P + N + E)
- Operating Temperature
- -25C to +55C
- Flame Retardant
- Yes
- Mechanical Life
- >5000 mating cycles
- Protection Class
- IP44 / IP67
- Connection Type
- Screw / Lug Type
Industrial Plug Socket Trade Information
- Minimum Order Quantity
- 10 Pieces
- Supply Ability
- 5000 Pieces Per Month
- Delivery Time
- 10 Days
